offset_pdf.py

It’s pivotal to ensure that your card fronts and backs are aligned. The front and back alignment is mainly determined by your printer, but it’s not always possible to calibrate it.

offset_pdf.py is a CLI tool that adds an offset to every other page in a PDF. This offset can compensate for the natural offset of your printer, allowing you to have good front and back alignment.

Basic Usage

First, you must determine the offset by using the calibration sheets.

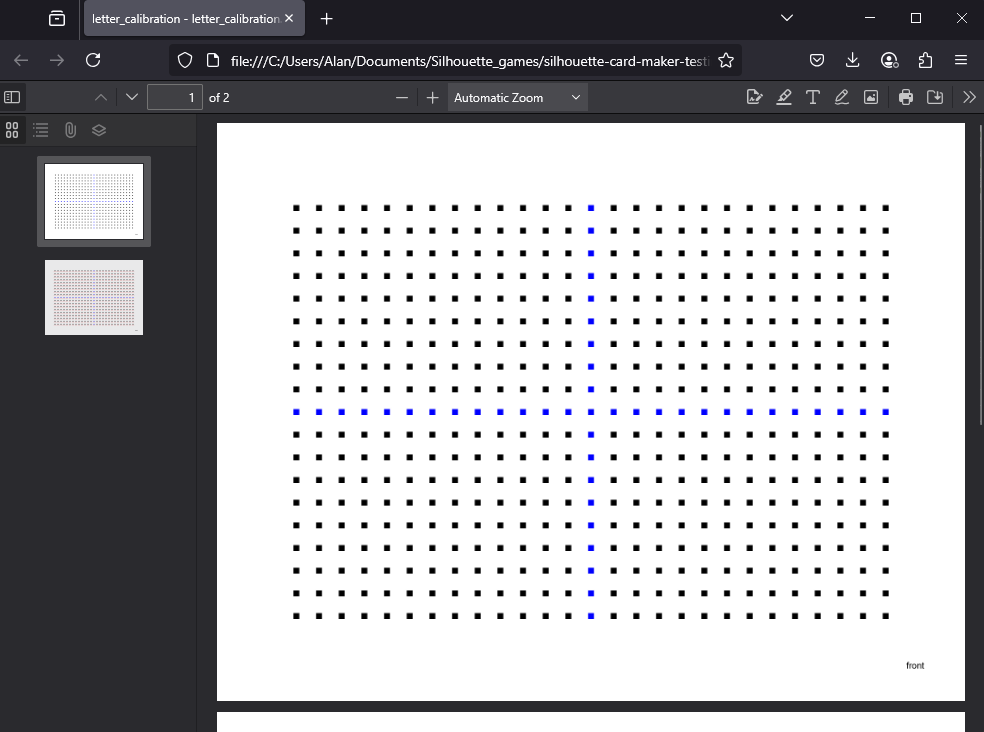

<paper size>_calibration.pdf has a front page and a back page.

The front page is a simple grid of squares.

The back page is the same grid of squares, except each square has a slight offset. The following grid illustrates the applied offsets.

| (-2, -2) | (-1, -2) | ( 0, -2) | ( 1, -2) | ( 2, -2) |
--------------------------------------------------------
| (-2, -1) | (-1, -1) | ( 0, -1) | ( 1, -1) | ( 2, -1) |
--------------------------------------------------------
| (-2,  0) | (-1,  0) |  Center  | ( 1,  0) | ( 2,  0) |
--------------------------------------------------------
| (-2,  1) | (-1,  1) | ( 0,  1) | ( 1,  1) | ( 2,  1) |
--------------------------------------------------------
| (-2,  2) | (-1,  2) | ( 0,  2) | ( 1,  2) | ( 2,  2) |

To determine the required offset, print out <paper size>_calibration.pdf with the card stock you plan to use.

Shine a strong light on the front so you can see the shadows on the back. Determine which set of front and back squares are aligned. This set will provide your offset.

Create and start your virtual Python environment and install Python dependencies if you have not done so already. See here for more information.

Run the script with your offset.

python offset_pdf.py --x_offset -5 --y_offset 10

Get your offset PDF at game/output/game_offset.pdf.

Save Offset

You can save your x and y offset with the --save option. After saving your offset, it’ll be automatically applied every time you run offset_pdf.py. You can override the loaded offset using --x_offset and --y_offset.

python offset_pdf.py --x_offset -5 --y_offset 10 --save

Additionally, you can automatically apply a saved offset in create_pdf.py by using the --load_offset option.

python create_pdf.py --load_offset

CLI Options

Usage: offset_pdf.py [OPTIONS]

Options:
  --pdf_path TEXT         The path of the input PDF.
  --output_pdf_path TEXT  The desired path of the offset PDF.
  -x, --x_offset INTEGER  The desired offset in the x-axis.
  -y, --y_offset INTEGER  The desired offset in the y-axis.
  -s, --save              Save the x and y offset values.
  --ppi INTEGER RANGE     Pixels per inch (PPI) when creating PDF.  [default:
                          300; x>=0]
  --help                  Show this message and exit.
